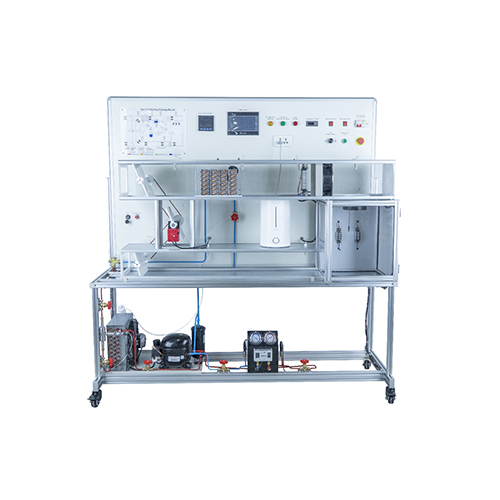

AFA051 Air Conditioning Training Bench Refrigeration Laboratory Equipment Teaching Equipment Educational EquipmentI.Product Overview
1.1 Overview
The air conditioning training bench is designed to help students and workers in related fields understand and learn about the working principles of indoor air conditioning. It can simulate refrigeration and dehumidification conditions in summer and heating and humidification conditions in winter. The air-conditioning training platform is mainly composed of five parts, namely the air-conditioning refrigeration part, the air-conditioning heating part, the air-conditioning humidification part, the air circulation and control part, and the electrical and sensor parts. The training platform is equipped with a touch screen, which can display and record all the data collected by the sensors on the screen. It also allows users to use a PC to connect to the screen and import data into the PC, which greatly facilitates users. usage of.
1.2 Features
1. The air-conditioned training platform adopts an aluminum frame structure, which is simple, sturdy and reliable. It is also equipped with 4 movable casters, which greatly facilitates users' mobile use.
2. The air-conditioned training platform adopts a safe electrical layout, has safe and reliable grounding, and is equipped with an emergency stop button.
3. The air-conditioned training platform adopts a modular design, and each unit can operate independently, greatly increasing the type and quantity of experiments.
4. The air-conditioned training platform uses safe and environmentally friendly refrigerant R134A.
5. The air-conditioning training platform is equipped with a port that can communicate with a PC, which can realize data collection and chart analysis of the equipment.
II.Performance Parameter
Input power supply: single-phase AC220V 50Hz
Size: 1800mm×800mm×1800mm
Weight: <150kg
Working conditions: Ambient temperature 10℃～30℃ Relative humidity <75% (25℃)
III.Components List and Detailed Introduction
3.1 Main part
|
Number
|
Name
|
|
1
|
Air conditioning training bench body
|
|
2
|
Electrical and Instrumentation Modules
|
|
3
|
Air deflector and control drive module
|
|
4
|
Condenser
|
|
5
|
Gas-liquid separator
|
|
6
|
Compressor
|
|
7
|
High and low voltage controllers and instrument panels
|
|
8
|
Fin evaporator
|
|
9
|
Fan
|
|
10
|
Fin preheater
|
|
11
|
Humidifier
|
|
12
|
Fin reheater
|
|
13
|
Casters
|
3.2 Power box part
|
Number
|
Name
|
|
1
|
Single phase multi-function meter
|
|
2
|
Touch display
|
|
3
|
Indicator light
|
|
4
|
Temperature Controller
|
|
5
|
Control switch
|
|
6
|
Breaker
|
|
7
|
Six position plug socket
|
|
8
|
Fan speed controller
|
|
9
|
Emergency stop switch
|
3.3 Equipment configuration list
|
Number
|
Name
|
Quantity
|
|
Component 1
|
Compressor
|
1
|
|
Component 2
|
Condenser
|
1
|
|
Component 3
|
High and low voltage controllers and instrument panels
|
1
|
|
Component 4
|
Fin evaporator
|
1
|
|
Component 5
|
Fin preheater
|
2
|
|
Component 6
|
Fin reheater
|
2
|
|
Component 7
|
Fan
|
1
|
|
Component 8
|
Humidifier
|
1
|
|
Component 9
|
Baffle
|
3
|
|
Component 10
|
Air deflector drive motor
|
1
|
|
Component 11
|
Touch display
|
1
|
|
Component 12
|
Single phase multi-function meter
|
1
|
|
Component 13
|
Six position plug socket
|
1
|
|
Component 14
|
Temperature Controller
|
1
|
|
Component 15
|
Emergency stop switch
|
1
|
|
Component 16
|
Breaker
|
1
|
3.4 Accessories
|
Number
|
Name
|
Quantity
|
|
1
|
Portable anemometer
|
1
|
|
2
|
Software CD
|
1
|
|
3
|
USB data cable
|
1
|
IV.Experiment List
Experiment 1 Demonstrates the function and operation of the air-conditioned training platform
Experiment 2 Demonstrates the functional experiment of the refrigeration system of the air-conditioned training platform
Experiment 3 Demonstrates the functional experiment of the heating system of the air-conditioned training platform
Experiment 4 Demonstrates the indoor air circulation state experiment under simulated closed loop
Experiment 5 Demonstrates the indoor air circulation state experiment under simulated open loop
