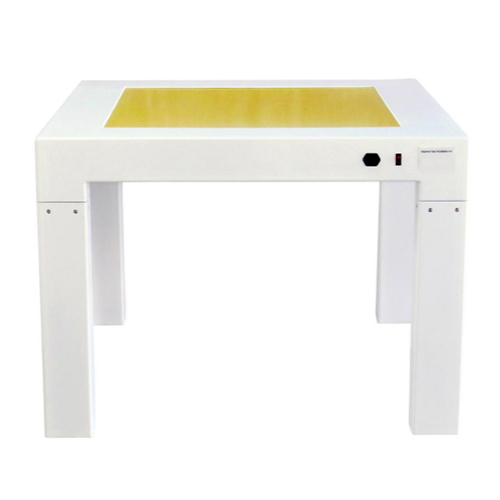

AF026 Alignment Table PCB Laboratory Equipment Educational Equipment Teaching Equipment1. Equipment Introduction
1.1 Overview
It is used to align the holes between the circuit board and the film to ensure that the hole alignment operation between the circuit board and the film is effective. A fan is installed underneath to ensure that the lamp will not overheat.
1.2 Features
Lighting: The alignment table is equipped with a lighting system to ensure that the image details are clearly visible.
Stability: The design of the alignment table needs to ensure that the image will not shake or shift during use to ensure accuracy.
Easy to operate: The alignment table has a simple table and power switch, which is convenient for users to operate and check.
2. Technical parameters
Power supply: AC 220v
Weight: <87kg
Dimensions: 111.5*111.5*82.1
Operating environment: -25℃ to 40℃
3.Component
|
No
|
Name
|
|
1
|
Power switch
|
|
2
|
Power interface
|
|
3
|
Placement platform
|
|
4
|
Fan
|
