AFM060 Cartesian Control Storage Module Trainer Didactic Training Technical Training Equipment Mechatronics Training Equipment
1. Product Introduction
1.1 Product Description

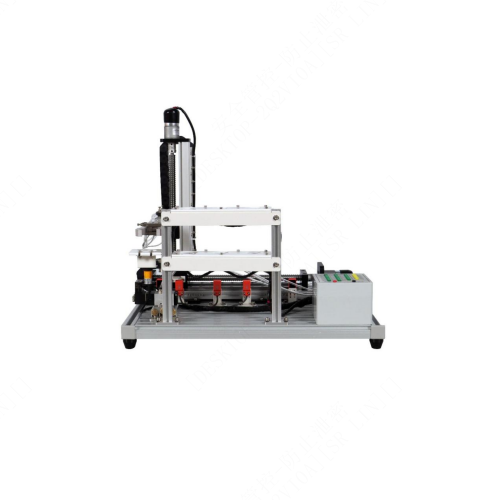

AFM060 Cartesian Control Storage Module is an advanced automated teaching equipment, which adopts rectangular coordinate manipulator structure and is specially designed for mechatronics, automation control and other majors in colleges and vocational schools. This equipment integrates precision transmission, intelligent detection and automation control technology, and realizes intelligent identification, precise positioning and optimized storage functions of materials through PLC programming.
This module adopts Cartesian coordinate system design and consists of X/Y axis precision transmission system, pneumatic gripper mechanism and intelligent storage unit. The equipment is equipped with 6 standardized silos, which realizes the three-dimensional spatial positioning of materials through dual-axis linkage, and the built-in priority storage algorithm can automatically optimize the storage position of materials. It is suitable for the teaching and practice of modern industrial technologies such as automated warehousing and intelligent sorting.
1.2 Product Features
High-precision positioning:
Dual-axis servo control
Repeat positioning accuracy ±0.5 mm
Equipped with 4 position sensors to ensure accurate positioning
Safe and reliable:
Dual limit protection (mechanical + electrical)
24V safe voltage design
Teaching advantages:
Transparent structure design
Modular programming interface
2. Technical Specifications
Basic technical parameters
Working voltage DC 24V
Air source pressure 0.4 MPa~0.6 MPa (external air pump required)
Equipment appearance parameters
Dimension 560 mm*457 mm*530 mm
Weight ≤20 kg
3. Product Component Names and Function Introduction
3.1 Product main body
No. Name Qty.
1 Gear motor 2
2 Pneumatic gripper 1
3 Sensor 1
4 Solenoid valve 1
5 Storage unit 1
6 Position sensor 6
7 Junction box 1
3.2 Product accessories
No. Name Qty.
1 25-core signal cable 2
2 Air pipe (3 m) 1
3 Material block 7
4 USB flash drive 1
5 2 mm safety electrical cable (green,100 cm) 23
6 2 mm safety electrical cable (yellow,100 cm) 6
7 2 mm safety electrical cable (black,100 cm) 1
8 2 mm safety electrical cable (red,100 cm) 1
4. Product Teaching Experiment List
(1) Basic operation and use of equipment
