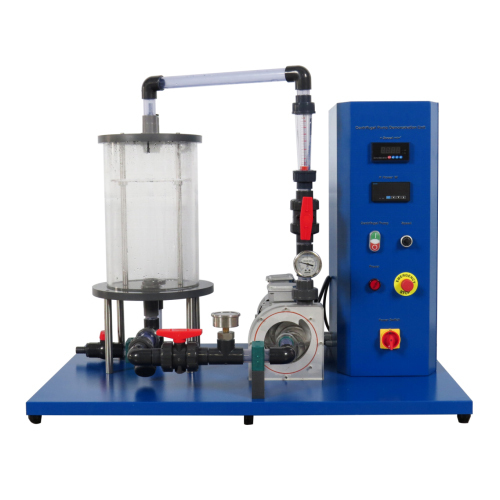

AFF259 Centrifugal Pump Demonstration Unit School Teaching Equipment Educational Equipment Fluid Mechanics Lab Equipment1. Product Introduction
1.1 Product Description
This equipment is driven by an asynchronous motor, and the speed can be steplessly adjusted via a frequency converter. In experiments, the relationship between the pump's operating characteristics and flow rate is studied and displayed as a characteristic curve. The output frequency and power of the frequency converter are displayed digitally. The pressure on the inlet and outlet sides is displayed on two pressure gauges.
1.2 Product Features
1. The product has an aesthetically pleasing and robust design.
2. The product possesses excellent electrical performance and electrical safety, fully ensuring user safety.
3. The product has a simple structure and a clear and easy-to-understand principle, making it easy for students to learn related knowledge.
2. Technical Specifications
2.1 Technical Parameters
Operating power supply Single-phase three-wire AC 220V/50Hz
Ambient temperature -10℃～+40℃
Ambient humidity <85% (25℃)
2.2 Dimensions and Weight
Dimensions 140mmX740mmX860mm
Weight ≤100kg
3. Product Component Names and Functions
3.1 Main Body of the Product
No. Name Quantity
1 ower Supply Cabinet 1
2 Flow Meter 1
3 Water Storage Tank 1
4 Water Pump Outlet Valve 1
5 Water Pump Outlet Pressure Gauge 1
6 Three-Phase Asynchronous Motor 1
7 Water Pump 1
8 Water Pump Inlet Pressure Gauge 1
9 Water Pump Inlet Valve 1
10 Water Storage Pump Inlet/Outlet 1
11 Vent Port 1
3.2 Product Accessories
No. Name Quantity
1 Pipe Clamp 6
2 USB Flash Drive 1
3 Water Pipe 1
3.3 Host Computer Section
No. Name Quantity
1 Run Button 1
2 Continuous Run Button 1
3 Stop Button 1
4 Point Input 9
5 Curve Graph 1
6 Curve Indicator 3
4. Product Teaching Experiment List
(1) Equipment Theory
(2) Equipment Usage
(3) Plotting Pump Characteristic Curves on the Host Computer
