Centrifugal Pump Fluids Engineering Training Equipment Educational Equipment Didactic Equipment

AFF061 Centrifugal Pump Fluids Engineering Training Equipment Educational Equipment Didactic Equipment
Description
characteristic curve of a centrifugal pump
variable speed via frequency converter
Centrifugal pumps are turbomachines that are used for conveying fluids. The unit can be used to study a centrifugal pump and to record a typical pump characteristic curve.

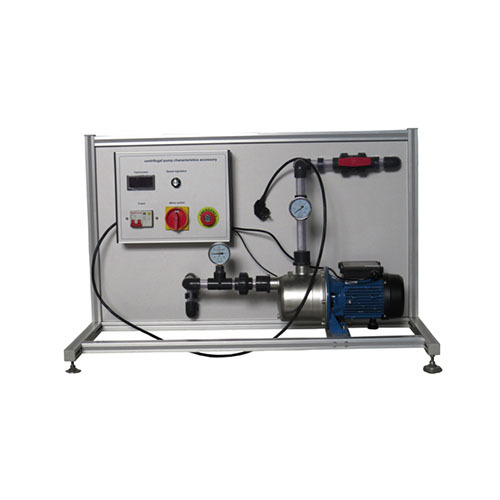

The experimental unit includes a self priming centrifugal pump, a ball valve on the outlet side and manometers on the inlet and outlet side. It is driven by an asynchronous motor. The speed is infinitely adjustable by using a frequency converter. A ball valve is used to adjust the head.
In experiments, the operating behaviour of the pump as a function of the flow rate is studied and displayed in characteristic curves. The motor’s speed and electrical power are displayed digitally.
Pressures on the inlet and outlet side are displayed on two manometers.

Specification
[1] investigation of a centrifugal pump
[2] drive with variable speed via frequency converter
[3] ball valve to adjust the head
[4] manometers on the inlet and outlet side of the pump
[5] digital display of speed and power
[6] flow rate determined by base module AFF061
[7] water supply using base module AFF061
