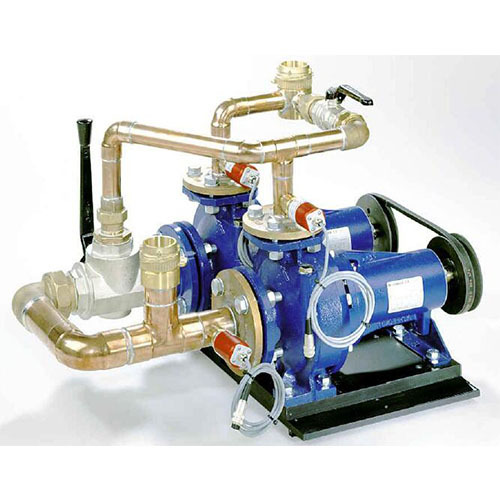

AFF077 Centurigal Pumps Series and Parallel Connected Fluids Engineering Training Equipment Educational Equipment Teaching EquipmentSpecification
[1] examination of standard centrifugal pumps
[2] operation with Supply Unit for Water Pumps
[3] powered by Universal Drive and Brake Unit
[4] driven via Universal Drive and Brake Unit
[5] pressure sensors at the inlet and outlet of the pumps
[6] pressure display on the display unit for water pumps
Technical Data
Standard centrifugal pump
max. flow rate: 24m³/h
max. head: 22m
nominal speed: 2900min-1
Dimensions and Weight
LxWxH: 770x530x430mm
Weight: approx. 80kg
