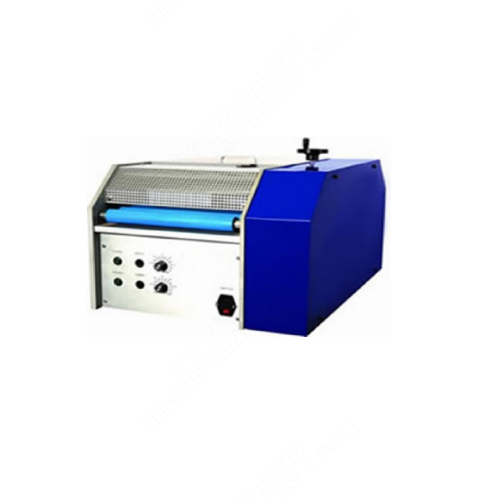

AF030 Circuit Board Brush Machine Didactic Equipment Technical Training Printed Circuit Board Experiment Equipment Model: PCB brush machine Function: Uses a single-sided mechanical brush to clean the circuit board, suitable for cleaning work in the PCB process. Technical parameters: * Maximum plate width (length unlimited): 300mm * Working plate thickness: 0.2-4mm * Production capacity: 60 pieces/h * Transmission speed: 0.2-2m/min * Brush roller swing stroke: 10mm * Brush roller swing frequency: 0-120 times/min * Brush roller maximum speed: 1400rpm * Maximum drying temperature: 100℃ * With a brush roller quick replacement device, the parallelism of the brush roller can be precisely adjusted * With water washing function * With extrusion and hot air drying function * With circulating water base, the equipment does not need water supply and drainage * Power supply: 220VAC/50Hz * Power: 2.2kW * Weight: 40kg * Overall dimensions (length/width/height): 650mm×550mm×500mm
