Name: Electric Machine Training System Electrical Lab Equipment Didactic Equipment Vocational Training Equipment
Brand: AirYa
SKU: AF300E
Rating: 5 (1 reviews)

Description

AF300E Electric Machine Training System Electrical Lab Equipment Didactic Equipment Vocational Training Equipment
1. Product Introduction
1.1 Product Description
The motor training system is suitable for experiments and tests in motor skill development and training.
The motor training system usually covers various types of motors, such as DC motors, AC motors (including asynchronous motors, synchronous motors, etc.), stepper motors, servo motors, etc., as well as related electrical control equipment and testing instruments. This comprehensive design enables the system to meet the teaching and training needs at different levels. At the same time, the system adopts a modular design, which is easy to expand and upgrade, and can adapt to different teaching plans and project requirements.
1.2 Product Features
The motor training system fully considers safety during design and adopts multiple protection mechanisms, such as overload protection, short circuit protection, leakage protection, etc. At the same time, the system is also equipped with complete safety operating procedures and warning signs to ensure the personal safety and equipment safety of students during the training process.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: Power supply: three-phase AC380V/50Hz
2.2 Dimension and weight
Dimension: 1700mm×750mm×1900mm
Weight: <232kg

3. Product component names and function introduction

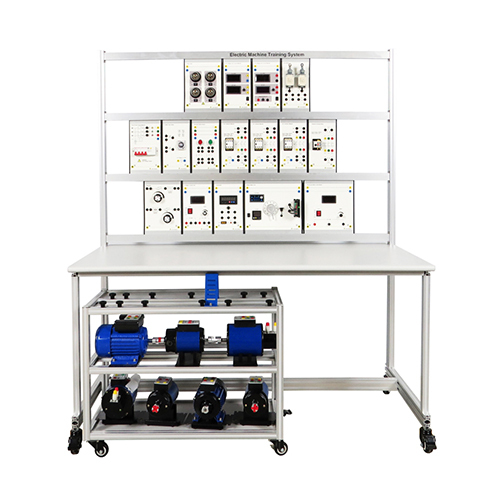

3.1 Product main body

No.	Name
1	Frame
2	Motor
3	Universal wheel
4	Table

3.2 Product electrical part

No.	Name
1	Bulb load module
2	AC measurement module
3	DC measurement module
4	Limit switch module
5	Main power module
6	Timer module
7	Button module
8	AC contactor module
9	Thermal relay module
10	Rheostat module
11	DC motor control module
12	Tachometer module
13	Stepper motor module
14	Tachometer generator module

3.3 Product accessories

NO.	Name
1	Fuse 5A 5*20
2	Fuse 10A 5*20
3	4mm safety electrical cable 1m double-ended red
4	4mm safety electrical cable 1m double-ended green
5	4mm safety electrical cable 1m double-ended yellow
6	4mm safety electrical cable1m double-ended black
7	4mm safety electrical cable 1m double-ended blue
8	4mm safety electrical cable 1m double-ended two-color
9	Fuse 6A 5*20
10	Fuse 2A 5*20
11	Fuse 0.5A 5*20

4. Product Configuration List

No.	Name	Qty
1	Bulb load module	1
2	AC measurement module	1
3	DC measurement module	1
4	Limit switch module	1
5	Main power module	1
6	Timer module	1
7	Button module	1
8	AC contactor module	3
9	Thermal relay module	1
10	Rheostat module	1
11	DC motor control module	1
12	Tachometer module	1
13	Stepper motor module	1
14	Speed generator module	1
15	Fuse 5A 5*20	10
16	Fuse 10A 5*20	10
17	4mm safety electrical cable 1m double ended red	15
18	4mm safety electrical cable 1m double ended green	15
19	4mm safety electrical cable 1m double ended yellow	15
20	4mm safety electrical cable 1m double ended black	15
21	4mm safety electrical cable 1m double ended blue	15
22	4mm safety electrical cable 1m double ended dual color	10
23	Fuse 6A 5*20	10
24	Fuse 2A 5*20	10
25	Fuse 0.5A 5*20	10

5. Product teaching experiment list (see the experiment guide for details)
(1) Start-up control experiment
(2) Self-locking control experiment
(3) Interlocking control motor forward and reverse experiment
(4) One-way synchronous generator experiment
(5) Motor speed measurement experiment
(6) AC voltage and current measurement experiment
(7) DC motor drive experiment
(8) Stepper motor test experiment
