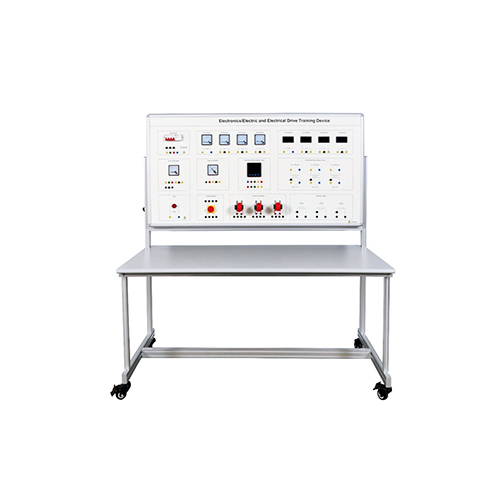

AF299E Electronics/Electric and Electrical Drive Training Device Electrical Lab Equipment Didactic Equipment Vocational Training Equipment1.Product Introduction
1.1 Product Description
The electronic/electrical and electric drive training device is an experimental teaching equipment designed for colleges and vocational schools. It is carefully developed by combining the advantages of similar products at home and abroad.
The training device integrates power electronics and semiconductor conversion. It can meet the experimental teaching needs of corresponding courses in different schools, including "circuit analysis" and "electrical basics". Each experimental pendant adopts a separated structure, the component panel is schematic, the lines are clear, the tasks of each pendant are clear, and the operation and maintenance are convenient.
1.2 Product Features
Strong adaptability: It can meet the experimental teaching needs of corresponding courses in various schools. The depth and breadth of the experimental content can be flexibly adjusted according to teaching needs, realizing the organic combination of popularization and improvement.
Strong complete set: From special power supply and other experimental components to special wires for experimental connection, the performance and specifications of the supporting components are closely matched with the needs of the experiment.
Strong openness: Each measuring instrument has a reliable protection function, which is safe and reliable to use, ensuring the safety of the operator
2. Technical specifications
2.1 Technical parameters
Three-phase five-wire input: 380V±10%, 60Hz,
Leakage protection current 30mA, leakage protection voltage 36V
Total capacity 1.5kVA
2.2 Dimension and weight
Dimension: 1600mmx700mmx1727mm
Weight: 140kg
3. Product component names and function introduction
3.1 Product main body
|
No.
|
Name
|
|
1
|
Circuit breaker
|
|
2
|
AC voltmeter
|
|
3
|
AC ammeter
|
|
4
|
AC voltmeter
|
|
5
|
AC ammeter
|
|
6
|
Active power meter
|
|
7
|
Power factor meter
|
|
8
|
Three-phase multi-function meter
|
|
9
|
Transformer
|
|
10
|
Load indicator light
|
|
11
|
Switch
|
|
12
|
Current transformer
|
|
13
|
Resistive load
|
3.2 Product accessories
|
No.
|
Name
|
|
1
|
4mm safety electrical cable (black)
|
|
2
|
4mm safety electrical cable (green)
|
|
3
|
4mm safety electrical cable (blue)
|
|
4
|
4mm safety electrical cable (red)
|
|
5
|
4mm safety electrical cable (yellow)
|
|
6
|
Fuse
|
4. Product Configuration List
|
No.
|
Name
|
Qty
|
|
1
|
Circuit breaker
|
1
|
|
2
|
AC voltmeter
|
2
|
|
3
|
AC ammeter
|
6
|
|
4
|
Active power meter
|
1
|
|
5
|
Power factor meter
|
1
|
|
6
|
Three-phase multi-function meter
|
1
|
|
7
|
Transformer
|
3
|
|
8
|
Load indicator light
|
1
|
|
9
|
Switch
|
1
|
|
10
|
Current transformer
|
3
|
|
11
|
Resistive load
|
3
|
|
12
|
4mm safety electrical cabla (black)
|
5
|
|
13
|
4mm safety electrical cabla (green)
|
5
|
|
14
|
4mm safety electrical cabla (blue)
|
5
|
|
15
|
4mm safety electrical cabla (red)
|
5
|
|
16
|
4mm safety electrical cabla (yellow)
|
5
|
|
17
|
Fuse
|
10
|
5. Product teaching experiment list
(1) Three-phase multi-function meter test experiment
(2) Ammeter and voltmeter test experiment
(3) Active power meter test experiment
(4) Power factor meter test experiment
