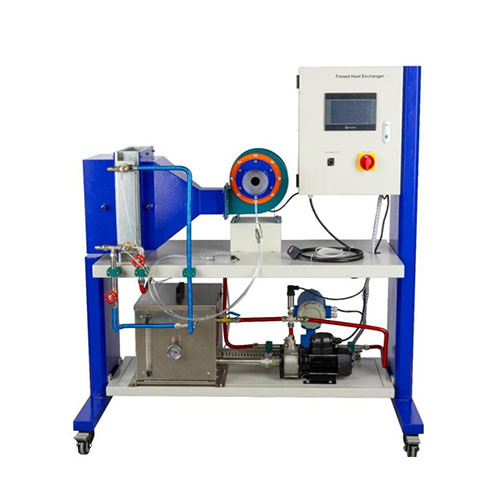

Name: Finned Heat Exchanger Thermal Lab Equipment Educational Equipment Teaching Equipment
Brand: AirYa
SKU: AFT077
Availability: InStock
Rating: 5 (1 reviews)

Description

AFT077 Finned Heat Exchanger Thermal Lab Equipment Educational Equipment Teaching Equipment
1. Equipment introduction
1.1 Overview
Finned Heat Exchanger is a thermodynamic experimental device, which is mainly used to study convection heat transfer theory and pump performance curves. The device provides a set of air ducts and a set of hot water circuits. The flow power of the air ducts comes from the centrifugal fan. The circulation of the hot water circuit is provided by the water pump. The implementation principle of the device is to heat the water medium in the water storage tank, and then Turn on the switch of the pump to circulate the hot water. When the temperature is stable, turn on the fan. The fan drives the air flow to take away the heat of the heat exchanger. This process satisfies the basic laws of thermodynamics. When the pump is running, you can study the pump. characteristic curve.
1.2 Features
(1) The device adopts a modular design, which is easy to install and clear and easy to understand the experimental principles.
(2) The device adopts electrical integration design and can obtain real-time data without relying on PC.
(3) The device uses more corrosion-resistant materials and paint layers, which can greatly extend the service life of the device.
2. Technical parameters
Input power: AC230V 50Hz
Dimension:1400mm*880mm*1550mm
Weight:<210kg
Working conditions: Ambient temperature 5℃～+40℃ Relative humidity <85% (25℃)

3. Components list and detailed introduction
3.1 Main part

No	Name
1	Centrifugal fan
2	Fin heat exchanger
3	Differential pressure measuring hole
4	spoiler
5	Differential pressure transmitter
6	control valve
7	Flow regulating valve
8	Flow diverting valve
9	water tank
10	mechanical thermometer
11	electrical box
12	Pressure Sensor
13	Electromagnetic Flowmeter
14	water pump

3.2 Power box part

No	Name
1	touch display
2	Network communication port
3	load switch
4	Siemens PLC
5	PID module
6	breaker
7	switching power supply
8	AC contactor
9	Analog acquisition module
10	switch
11	Single phase voltage regulating module
12	Temperature Transmitter
13	relay

3.3 Equipment configuration list

No	Name	Qty
Component 1	Centrifugal fan	1
Component 2	Differential pressure transmitter	1
Component 3	Pressure Sensor	1
Component 4	Electromagnetic Flowmeter	1
Component 5	touch display	1
Component 6	Siemens PLC	1
Component 7	Analog acquisition module	1
Component 8	PID module	1
Component 9	AC contactor	1
Component 10	relay	3
Component 11	Temperature Transmitter	4
Component 12	Single phase voltage regulating module	1
Component 13	switch	1
Component 14	water pump	1

3.4 Accessories

No	Name	Qty
1	Software CD	1
2	Network port extension cable	1

4. Experiment list
Experiment 1 Understand the functions and usage of Finned Heat Exchanger
Experiment 2 Thermodynamic experiment based on Finned Heat Exchanger
Experiment 3 Experiment on drawing the pump characteristic curve of Finned Heat Exchanger
Experiment 4 Understanding the sensor data processing of Finned Heat Exchanger
Experiment 5 Understanding the communication experiment between Finned Heat Exchanger
