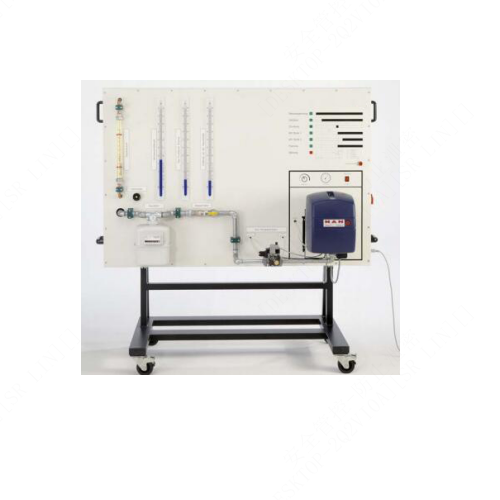

AFT012 Forces Air Gas Burner Training Panel Technical Teaching Equipment Demonstrational Equipment Thermal Lab Equipment1.Learning Objectives / Experiments
familiarisation with components for heating systems
starting a gas burner
nominal load adjustment on a gas burner
fault-finding and fixing
calculation of the gas flow rate / operating volume
2.Specification
[1] simulation of the operation of a gas burner
[2] hazard-free operation of the burner with air
[3] diaphragm pump for pressure generation, pumping medium: air
[4] display of the most important operating pressures on single tube manometers
[5] indication of burner operation using a flickering light
[6] monitoring of burner operation using flame safeguard
