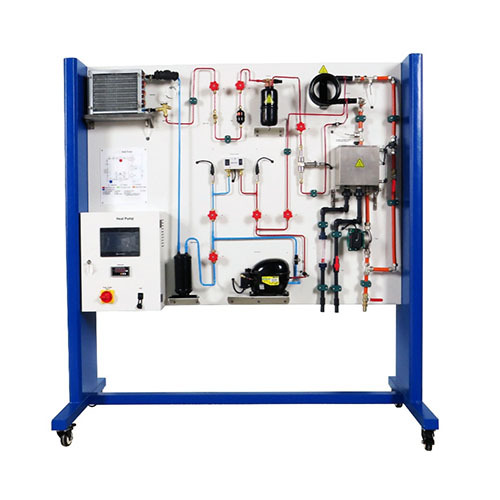

AFA059 Heat Pump Refrigeration Laboratory Equipment Teaching Equipment Educational Equipment1. Product Introduction
1.1 Product Description
This training device is used to study the refrigeration compression cycle and evaporation system. The compressor drives the refrigerant to perform the refrigeration cycle, introduces the operation mode of the refrigeration circuit to students systematically, masters the principle of the refrigeration circuit and the operation mode of the compressor, and presents it systematically so that students can clearly understand the principle during the teaching process. Master the refrigeration principle and pipeline connection principle of the refrigeration circuit.
1.2 Product Features
The training table adopts a sheet metal welding frame structure, which is simple and firm. While reducing the overall weight of the equipment, it ensures the overall strength of the equipment. There are 4 universal wheels installed at the bottom, which can be easily moved.
The refrigeration cycle pipeline is laid on the equipment installation plate, and the high and low temperature zones are painted with different colors for easy observation and distinction.
The equipment has a good safety protection system. The compressor is equipped with a start protector, which can immediately stop the compressor from working when the system pressure is abnormal, protecting the compressor and the system safety;
The electrical control is installed in the control box with a leakage protection switch, an emergency stop button and reliable grounding protection measures to ensure the safety of equipment and personnel.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: Single phase, three wires, AC220V±10%, 50Hz
Refrigerant: R134A
Working conditions: Ambient temperature 10℃～30℃; Relative humidity <75% (25℃)
2.2 Dimension and weight
Dimension 1: 1800mm×800mm×1800mm
Weight 1: < 170kg
3. Product component names and function introduction
3.1 Product main part
|
No
|
Name
|
|
1
|
Evaporator
|
|
2
|
Expansion valve
|
|
3
|
Filter drier
|
|
4
|
Gas-liquid separator
|
|
5
|
High and low voltage protection switch
|
|
6
|
High and low pressure sensors
|
|
7
|
Electronic flow meter
|
|
8
|
Water tank
|
|
9
|
Electrical box
|
|
10
|
Water pump
|
|
11
|
Rotor flow meter
|
|
12
|
Fluid storage tank
|
|
13
|
compressor
|
|
14
|
Inlet of external circulating water
|
|
15
|
External circulating water outlet
|
|
16
|
Universal wheel
|
3.2 Product electrical part
|
No
|
Name
|
|
1
|
Touch screen
|
|
2
|
Power meter
|
|
3
|
Load switch
|
|
4
|
USB port
|
3.3 Product accessories
|
No
|
Name
|
|
1
|
USB data cable
|
|
2
|
Software USB flash drive
|
4. Product Configuration List
|
No
|
Name
|
Qty
|
|
1
|
High and low pressure protection switch
|
1
|
|
2
|
Electronic pressure gauge
|
2
|
|
3
|
Compressor
|
1
|
|
4
|
Liquid storage tank
|
1
|
|
5
|
Evaporator
|
1
|
|
6
|
Expansion valve
|
1
|
|
7
|
Dry filter
|
1
|
|
8
|
Gas-liquid separator
|
1
|
|
9
|
Rotor flowmeter
|
1
|
|
10
|
Water pump
|
1
|
|
11
|
Electronic flowmeter
|
1
|
|
12
|
Sight glass
|
1
|
|
13
|
Condenser coil
|
1
|
|
14
|
Touch screen
|
1
|
|
15
|
Power meter
|
1
|
|
16
|
Load switch
|
1
|
|
17
|
USB cable
|
1
|
|
18
|
Software USB drive
|
1
|
5. Product teaching experiment list (see the experiment guide for details)
(1) Water tank cooling experiment
(2) Software connection experiment
(3) Evaporator fan adjustment cooling effect
(4) Condenser water circulation control heating effect
(5) Data export
