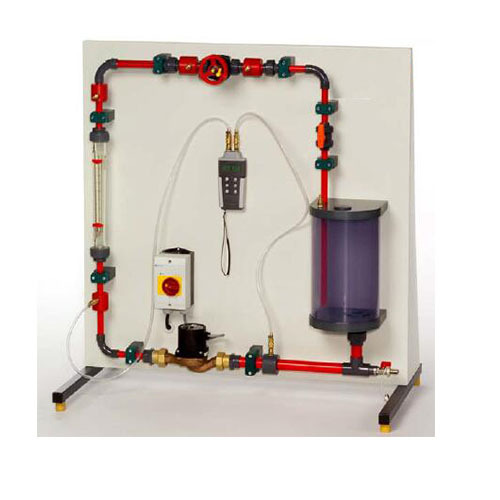

AFF076 Hydraulic Circuit with Centrifugal Pump Fluids Engineering Training Equipment Educational Equipment Teaching Equipment
Learning Objectives / Experiments
recording the pump characteristic
pressure losses at various valves and fittings depending on the flow
determination of the operating point in a hydrostatic circuit
Specification
[1] pressure conditions at various measuring objects
[2] measuring objects: pump, flow meter, diaphragm valve
[3] centrifugal pump with 3 different speeds
[4] closed water circuit
[5] flow can be adjusted via valves
[6] flow measurement using rotameter
[7] annular chambers allow easy measurement of pressure
[8] differential pressure measurement using electronic pressure meter

Technical Data
Tank- volume: 8,5L
Pump:
max. power consumption: 70W
max. flow rate: 5m³/h
max. head: 6m
three switching stages for speed selection
Measuring ranges
flow rate: 150...1600L/h
differential pressure: -350...350mbar
Dimensions and Weight
LxWxH: 1000x610x1100mm
Weight: approx. 55kg
Required for Operation
230V, 50/60Hz, 1 phase or 120V, 60Hz/CSA, 1 phase
