AFT004 Installation Technology Losses in Pipe Bends Technical Teaching Equipment Demonstrational Equipment Thermal Lab Equipment1.Learning Objectives / Experiments
flow measurement
differential pressure measurement
effect of flow and surface roughness
effect of the flow velocity
effect of changes in pipe direction
2.Specification
[1] investigation of the pressure loss at pipe elements with different changes in pipe direction and materials
[2] pipe elements are commercially standard components in heating and sanitary engineering

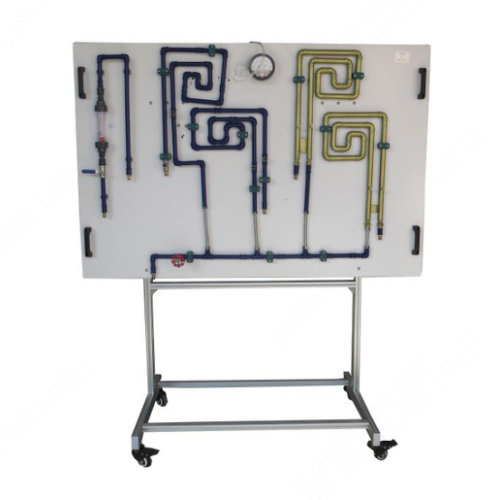

[3] clear panel mounted on a sturdy, movable frame
[4] simply selection of the measuring sections via hose connection with quick-release couplings
[5] flow can be adjusted via valves
[6] flow measurement using rotameter
[7] differential pressure measurement via differential pressure meter with display
