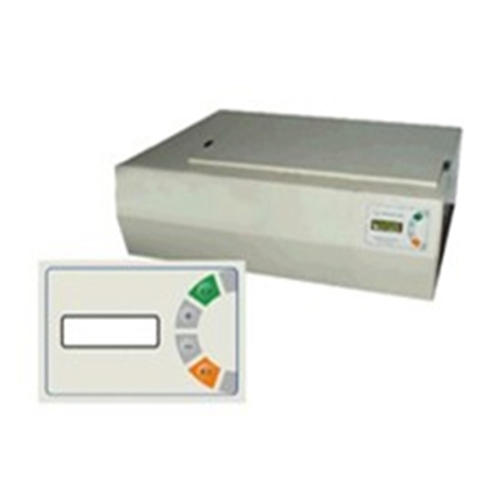

AF018 Laser Plotter System PCB Laboratory Equipment Educational Equipment Teaching EquipmentI. Introduction
Laser plotter system consist of laser plotter, raster image processing card, light painting output control software. It can process customer designed photo, image, letter, data. It can process one side, two sides, it can express Gerber file, can output PCB file, software function is strong, it is easy to use.
Image szie:400mm×300mm(12inchX16inch)
Scan density: 4000/8000DPI
Scan mode: External drum 8 roads parallel scan
Repeat accuracy:±10μm
Scan speed: 6minutes/12minutes/18minutes
Operate mode: single sheet manual, semi-automatic selectable
Dimension: 850 mm*480mm*1100mm
Interface: all signals connect to PC is TTL level
Adapt range: AD, printing, silk print, PCB
