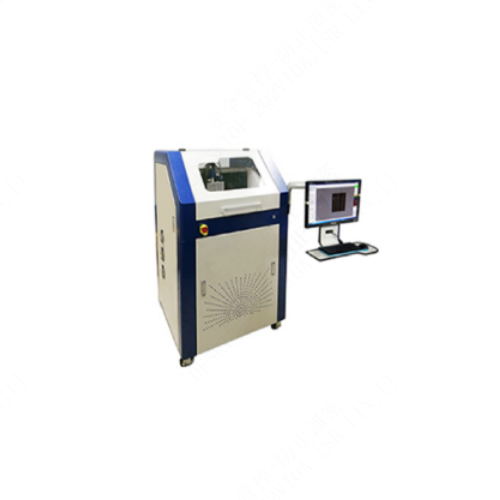

AF028 Multifunctional Circuit Board Engraving Machine Didactic Equipment Technical Training PCB Manufacture System Function: Suitable for small batch and rapid production of circuit boards in laboratories. It has the processing capabilities of drilling, graphic line milling, graphic contour milling, and making blind holes and blind slots. It can be used for digital, analog and mixed digital and analog circuit boards, radio frequency, microwave circuit boards, and panels and nameplates of PVC, plexiglass, and aluminum materials; it can engrave polyimide flexible materials and dig blind slots on microwave circuits; it can accurately control the depth of engraving and milling materials, and repair and cut circuit boards with assembled components. Technical parameters: The thinnest wire width/pitch for processing: 0.075mm/0.1mm (3mil/4mil) The smallest hole diameter for processing: 0.15mm (6mil) The largest processing area: 305mm x 230mm Using German high-speed electric spindle, speed 100,000rpm Using German special spindle driver Standard genuine data processing software Circuit CAM 7 Resolution of mobile control system: 0.5μm Repeat positioning accuracy: ≤±2μm System positioning accuracy: ≤±10μm Maximum drilling speed: 150 times/min Maximum no-load moving speed: 250mm/s Granite platform, bridge structure Maximum contour milling speed: 10mm/s With coaxial depth limit function, using contact coaxial limit head 20 tool change positions, electronically controlled, fully automatic tool change X and Y axes, imported high-precision servo motor drive In addition to the Z axis, it is also equipped with an independent W axis for direct control of the tool depth Equipped with a vertical integrated machine cover Equipped with an industrial dust collection system Equipped with a high-resolution camera, dedicated Lens and diffuse reflection light source With camera target positioning function The camera has no blind spot design and is equipped with camera knife seat correction function With automatic cover opening protection function Equipped with industrial control computer and display Power supply: 220VAC/50Hz Power: 1.6kW Weight: 200kg Hood dimensions (length/width/height): 850mm×900mm×1450mm Overall dimensions (length/width/height): 900mm×1400mm×1450mm Optional vacuum adsorption platform Note: Dry compressed air is required, pressure 6-8bar, flow rate must be greater than 70L/min
