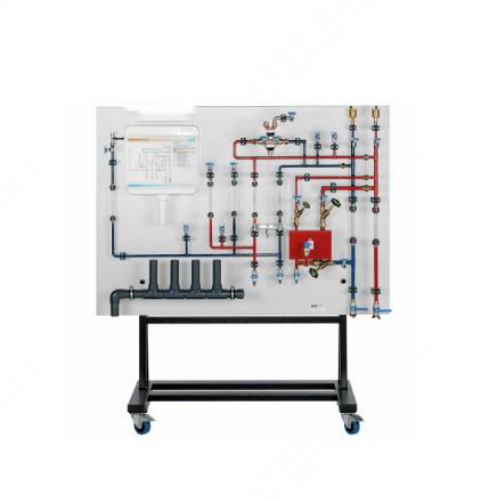

AFS004 Pipe Cleaning Training Panel Educational Training Teaching Model Sanitation Trainer 1. Description The flushing process is intended to remove contaminants, for example the remnants of solder or sealant from the drinking water pipes. The individual pipe circuits must be flushed from bottom to top. It is possible to observe the flushing action by means of transparent pipe sections. Flushing is performed via two lines that are connected to a cold water supply. Contaminants are introduced into the pipe system through openings with shut-off valves. Original plumbing components are used in the unit. 2. Technical details Specification pipe flushing in accordance cold water connection using hose usage of original plumbing components contaminants can be introduced into the pipe system via filling openings that can be shut off transparent pipe fittings enable optimal observation of the flushing process alternative accessories: flushing compressor (not included) 3.Technical data Automatic mixer, thermostatic mixer recommended flow pressure: 1…5bar min. flow rate: 5L/min max. water temperature: 80°C, with temperature safety stop Two handle mixer Simulated hot water preparation Safety fittings quick-action bleed valve safety valve on the hot water preparation unit Pipes: Cu / transparent plastic 2x cold water connection: Geka coupling 1” 10x hose connection with quick-release coupling Required for operation cold water connection, drain
