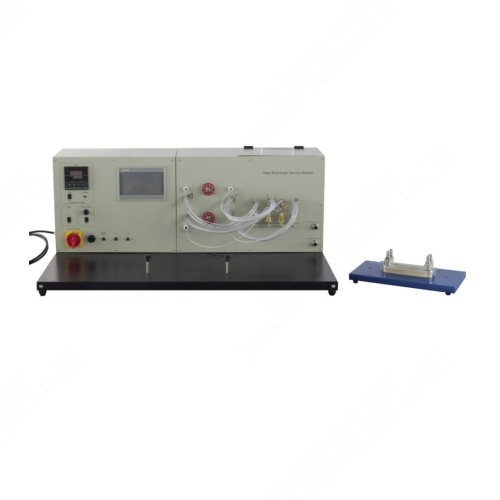

AFT071 Plate Heat Exchanger Study Unit Educational Training Equipment Demonstrator Thermal Laboratory EquipmentFunction:
Laboratory-sized plate Heat Exchanger that enables;
Study of a plate thermal exchanger
Calculation of the thermal balance
Calculation of effectiveness of the exchanger
Calculation of the exchange coefficient
Influence of the flow rate of cold water
Influence of the hot water temperature
Technical Details
Flowmeter of cold water
Scale from 0.2 to 1.5L/min
Glass tube
Stainless floater
Brazed plate exchanger
Input at low point
Output at high point
Possibility to switch to counter-current
Temperature probe
Connection 3 wires
Four probes placed at the entrance and exit of the heat exchanger
Instrumentation:
The bench including a digital display for temperature probes displays 3 temperatures.
With manual or automatic scrolling means.
Electrical supply : 220 Vac – 50 Hz
Dimensions: (LxWxH mm): 580 x 400 x 660
weight (Kg): 20
