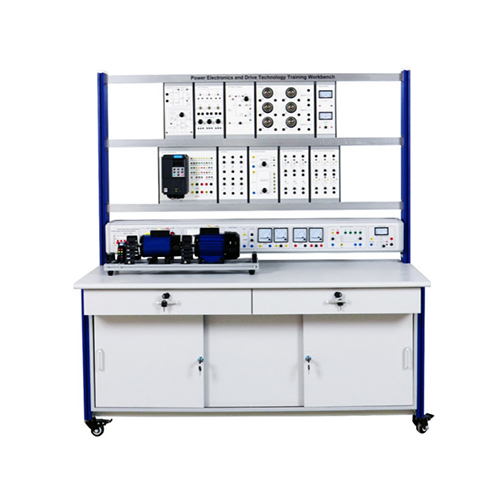

Name: Power Electronics and Drive Technology Training Workbench Electrical Lab Equipment Didactic Equipment Vocational Training Equipment
Brand: AirYa
SKU: AF303E

Description

AF303E Power Electronics and Drive Technology Training Workbench Electrical Lab Equipment Didactic Equipment Vocational Training Equipment
1. Product Introduction
1.1 Product Description
The Power Electronics and Drive Technology Training Workbench includes typical application circuit units of various types of thyristors. Through relevant experiments, students can be familiar with the electrical characteristics of thyristors, master the control principles and control methods, and cultivate corresponding knowledge and skills. It is suitable for teaching and skill training assessment of relevant majors in higher vocational colleges, technical colleges, secondary vocational schools and technical schools.
1.2 Product Features
1. The training platform is built with an aluminum alloy base plate, which has a stable structure. Each actuator module is placed on the base plate, which is easy to use and not easy to damage.
2. The training device is equipped with an electrical control cabinet. The power supply of the system is led out through a safety plug, and the wiring of the training device is connected through the terminal block, which is safe and reliable.
3. The overall structure adopts an open and detachable type, which can easily replace the module. The module content is determined according to the principle of having productive functions and integrated learning functions, so that the required modules can be conveniently selected during teaching or competition.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: three-phase five-wire, 380V±10% 50Hz
Overall capacity: < 2.0 kva
Working environment conditions: Working conditions: Ambient temperature: -10℃~ + 40℃; Relative humidity: < 85% (25℃)
2.2 Dimension and weight
Dimension 1: 1600mm×800mm×1800mm
Weight 1:150KG

3. Product component names and function introduction
3.1 Product main part

No.	Name
1	Frame
2	Power box
3	Motor unit
4	Drawer
5	Single junction transistor trigger circuit
6	Potentiometer switch module
7	Thyristor trigger circuit module
8	Inverter hanging box
9	DC voltage and current measurement module
10	Load hanging box
11	Diode module
12	Thyristor trigger board module
13	Half-controlled thyristor bridge module
14	Thyristor rectifier bridge module
15	Universal caster

3.2 Product electrical part

No.	Name
1	Three-phase circuit breaker
2	Emergency stop button
3	Three-phase power output module
4	Single-phase power socket
5	Autovoltage regulator
6	AC voltmeter and ammeter module
7	AC voltmeter and ammeter module
8	Single-phase transformer
9	Rectifier bridge module

3.3 Product accessories

No.	Name
1	Black 4mm safety electrical cable
2	Red 4mm safety electrical cable
3	Yellow 4mm safety electrical cable
4	Green 4mm safety electrical cable
5	Blue 4mm safety electrical cable
6	Dual-color 4mm safety electrical cable
7	USB-RS485 data line
8	Fuse
9	4mm to 2mm connector
10	U disk

4. Product Configuration List

No.	Name	Qty
1	Three-phase asynchronous squirrel cage motor	1
2	DC shunt motor	1
3	Single junction transistor trigger circuit	1
4	Potentiometer switch module	1
5	Thyristor trigger circuit module	1
6	Inverter hanging box	1
7	DC voltage and current measurement module	1
8	Load hanging box	1
9	Diode module	1
10	Thyristor trigger board module	1
11	Half-controlled thyristor bridge module	1
12	Thyristor rectifier bridge module	1
13	Three-phase circuit breaker	1
14	Emergency stop button	1
15	Single-phase power socket	1
16	Auto-coupling voltage regulator	1
17	AC voltmeter and ammeter module	1
18	AC voltmeter and ammeter module	1
19	Single-phase transformer	1
20	Rectifier bridge module	1
21	Black 4mm safe electrical cable	7
22	Red 4mm safe electrical cable	5
23	Yellow 4mm safe electrical cable	5
24	Green 4mm safe electrical cable	5
25	Blue 4mm safe electrical cable	5
26	Dual-color 4mm safe electrical cable	3
27	USB-RS485 data line	1
28	Fuse	20
29	4mm to 2mm connector	6
30	U disk	1

5. Product teaching experiment list
(1) Simple transistor trigger circuit experiment
(2) Single junction transistor trigger circuit experiment
(3) Diode half-wave controlled rectifier circuit experiment
(4) Diode bridge full-controlled rectifier circuit experiment
(5) Three-phase bridge full-controlled rectifier circuit experiment
(6) Three-phase bridge half-controlled rectifier circuit experiment
(7) Single-phase half-controlled bridge rectifier circuit experiment
(8) Single-phase half-controlled bridge rectifier circuit driving motor experiment
(9) Inverter control experiment
