Name: Programmable Logic Controller Trainer Electrical Lab Equipment Didactic Equipment Vocational Training Equipment
Brand: AirYa
SKU: AF309E
Rating: 5 (1 reviews)

Description

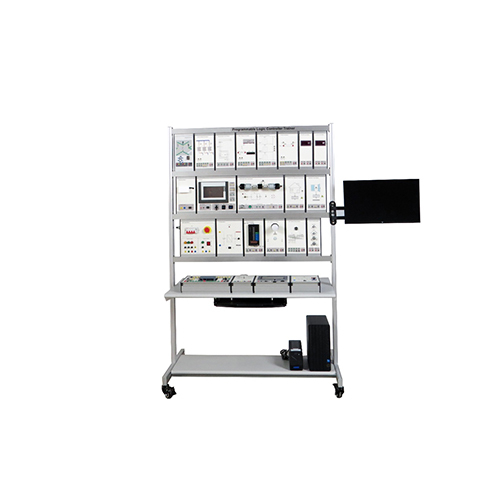

AF309E Programmable Logic Controller Trainer Electrical Lab Equipment Didactic Equipment Vocational Training Equipment
1. Product Introduction
1.1 Product Description
This device is a programmable logic controller experimental platform designed for the education field. It is mainly used for teaching experiments to help students deeply understand the PLC control principle, PID control strategy and the design and implementation of the automation control system. The equipment is operated through the hanging box module. Most of the hanging box modules are powered by DC24V power supply, which is easy to operate, safe and reliable.
1.2 Product Features
1. Modular design: The hanging box module is used to facilitate students to quickly build the experimental system and flexibly combine different functional modules to meet diverse experimental needs.
2. Strong intuitiveness: The equipment is equipped with clear indicator lights and interface logos. Students can intuitively observe signal transmission and equipment status, which is convenient for understanding PLC control principles.
3. High safety: Most hanging box modules use DC24V safe voltage to effectively reduce the risk of electric shock. At the same time, the equipment has overload protection and short-circuit protection functions to ensure the safety and reliability of the experimental process.
4. Rich experimental content: Covering a variety of experimental contents such as PLC programming, PID control, and logic control, meeting the teaching needs of different courses, and helping students fully master automation control technology.
5. Easy to operate and maintain: The device operation interface is simple and clear, and easy to use. At the same time, the equipment design takes into account the convenience of maintenance, and performs daily maintenance and troubleshooting.
2. Technical specifications
Technical parameters
Input power: three-phase five-wire AC380V/50Hz
Operating temperature range: 0℃~40℃
Relative humidity: ≤80%
Dimension: 1320mm*770mm*2150mm
Weight: 170kg

3. Product component name and function introduction
3.1 Product main part

No	Name	Qty
1	Device module part	1
2	Display screen	1
3	Host	1
4	UPS uninterruptible power supply	1
5	Keyboard tray	1

3.2 Product module part

No	Name	Qty
1	DC power module (DC20V)	1
2	DC power module (DC24V)	1
3	Main power module	1
4	DC 0-10V power module	1
5	DC ±10V power module	1
6	Switch module	1
7	PLC module	1
8	Touch screen module	1
9	PID module	1
10	Function generator module	1
11	Level controller module	1
12	Indoor lighting control module	1
13	Digital tube module	1
14	Temperature control module	1
15	Automatic room temperature control module	1
16	Three-story elevator module	1
17	Conveyor belt module	1
18	Crane module	1
19	Star-delta starting circuit module	1
20	Traffic light control system module	1
21	Name container bottling plant module	1
22	Position control module	1
23	Four-quadrant DC motor control module	1

3.3 Product accessories

No	Name	Qty
1	Socket	1
2	Multimeter	1
3	Battery	1
4	Fuse	5
5	USB flash drive	1
6	2mm safety connection cable (yellow)	5
7	2mm safety connection cable (green)	10
8	2mm safety connection cable (black)	10
9	2mm safety connection cable (red)	5
10	4mm safety connection cable (blue)	4
11	4mm safety connection cable (two-color)	2
12	4mm safety connection cable (yellow)	4
13	Network cable	2
14	Power cord	2
15	Plug	1
16	Mouse	1
17	Keyboard	1

4. Product teaching experiment list
(1) Crane module test
(2) Liquid level control experiment
(3) Star-delta start-up test
(4) Digital tube module test
(5) Container bottling plant module test
(6) Elevator module test
(7) Traffic light module test
(8) Automatic room temperature control module test
(9) Motor angle control test
(10) PID control of four-quadrant DC motor
(11) Four-quadrant DC motor control module test
