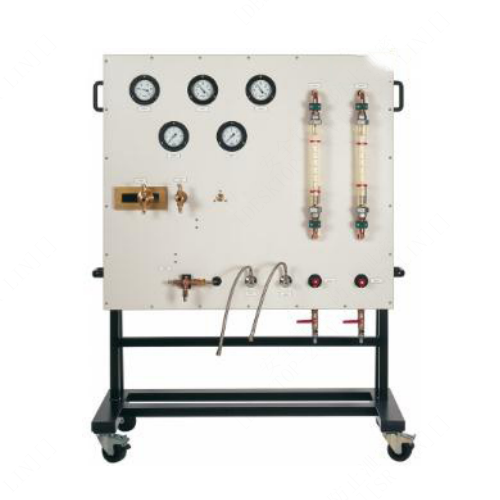

AFS002 Sanitation Fittings Training Panel Educational Training Teaching Model Sanitation Trainer 1.Description Sanitation fittings can be connected and investigated in respect of their function and operation on this trainer. The trainer provides several methods of connection so additional products from different manufacturers can be used. Some connectors are flexible and will adapt to different sized fittings. 2.Technical details investigating the most common sanitation fittings facilities for hot and cold water supply using quick-release couplings possibility to test different fittings simultaneously flushing valve two handle mixer for a shower two handle mixer as water tap 3 dial thermometers 2 Bourdon tube manometers 2 rotameters 2 adjustable pressure reducing valves Technical data Flushing valve 1,2…5bar Pressure reducing valve max. initial pressure: 25bar outlSR pressure: 1,5…6bar, up to 70°C Measuring ranges temperature: 2x 0…60°C, 1x 0…100°C pressure: 2x 0…6bar flow rate: 160…1600L/h Required for operation cold and hot water connection drain
