AF270E Set Of Training And Laboratory Equipment "Street Lighting" Electrical Lab Equipment Teaching Equipment Educational EquipmentI.Product Overview
1.1 Overview
This set of educational and laboratory equipment "Street Lighting" (hereinafter referred to as the stand) is intended for practical development in all stages of preparation of electrical work and for the direct work of installing electrical components, preparing wires, laying cable channels and connecting power supplies.

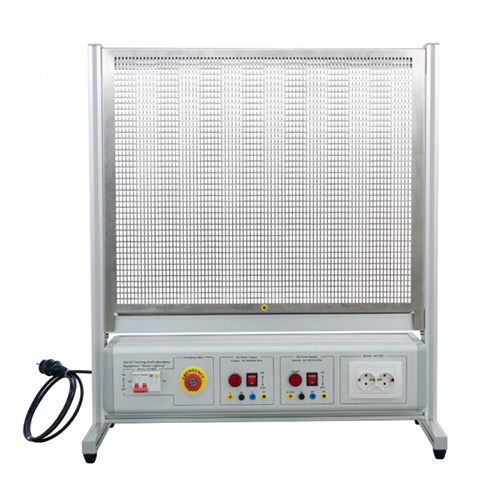

The booth simulated a control panel for outdoor lighting of an industrial enterprise. The working area of the booth is equipped with lamps, switches, relays, keys, and contactors. This model allows you to assemble the lighting system of the power plant according to the electrical wiring of the enterprise.
1.2 Features
1. The training platform is an aluminum alloy structure (anodized coating). There is an adjuster at the bottom of the column to adjust the height and ensure flatness. The table top is a fireproof board.
2. The fixed bottom plate is molded and made of high-quality materials, which has good toughness and fatigue resistance and can be used repeatedly. It is used in conjunction with the mesh on the stencil, which not only facilitates the installation of fixed components, but also ensures that the electrical components are accurately installed on the stencil, so that the electrical components are fixed on the stencil without tilting.
II.Performance Parameter
Input power: AC 220V ±10% 50Hz
Weight: 41KG
Size: 890*530*1090
III.Components List and Detailed Introduction
3.1 Main Part
|
Number
|
Name
|
|
1
|
Mesh board
|
|
2
|
Power cable
|
|
3
|
Power box
|
3.2 Power box part
|
Number
|
Name
|
|
1
|
2P leakage protection circuit breaker
|
|
2
|
Emergency button
|
|
3
|
Red indicator light
|
|
4
|
Switch
|
|
5
|
Red indicator light
|
|
6
|
Switch
|
|
7
|
European socket
|
|
8
|
Output terminal
|
|
9
|
Fuse protection
|
3.3 Accessories
|
Number
|
Name
|
Quantity
|
|
1
|
Moisture-proof lamp
|
1
|
|
2
|
Fully protected digital multimeter
|
1
|
|
3
|
2P circuit breaker
|
1
|
|
4
|
AC contactor
|
1
|
|
5
|
Toolkit
|
1
|
|
6
|
Street light controller
|
1
|
|
7
|
Fuse
|
1
|
|
8
|
Ground row
|
1
|
|
9
|
Red indicator light
|
1
|
|
10
|
Green indicator light
|
1
|
|
11
|
220V relay
|
2
|
|
12
|
Push-button box
|
1
|
|
13
|
Red button
|
1
|
|
14
|
3A fuse
|
5
|
|
15
|
5A fuse
|
5
|
|
16
|
Magnetic switch
|
1
|
|
17
|
Load switch
|
1
|
|
18
|
0.5m guide rail
|
1
|
|
19
|
Terminal block
|
5
|
IV.Experiment List
Experiment 1 Overview of Street Light Controller
Experiment 2 Street lighting controller controls moisture-proof lights
