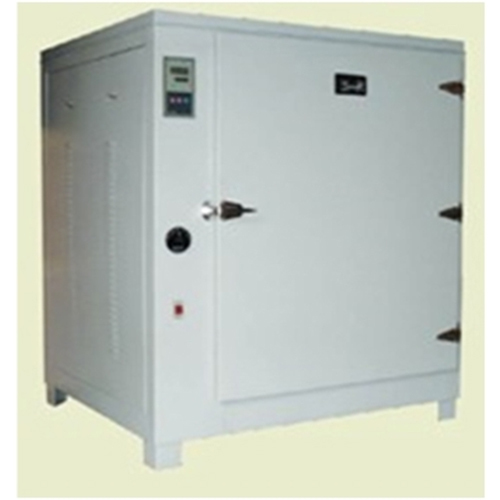

AF016 Silk Wire Mesh Dryers PCB Laboratory Equipment Educational Equipment Teaching EquipmentI. Introduction
Fan with forced convection and natural convection function, it meets different experiment function.
Usage: it is for drying silk wire mesh plate ink.
Capacity: it can preset dryer temperature and display it, with temperature adjust function.
Temperature range: R.T~300℃
Temperature natural convection:±0.5℃
Max temperature: 20min
temperature departure:±3℃
temperature display mode: measurement and setting temperature digital display
temperature sensor: industrial resistor(PT100)
Shell material:rust-proof treatment cold-roll steel sheets electrostatic spray
Inner material: galvanized sheet
Inner door: thermo stability toughened glass
thermal insulation material: AGM
door seal: environmental silicon rubber bar
heater: nickel-chromium electric heater
inner box dimension:D1000mm×W800mm×H1000mm
Power: 4kw
Power supply: AC 220V, 50Hz
