Single Phase and 3 Phases Motor Trainer Kit With VFDSchool Teaching Equipment Educational Equipment Electrical Training Equipment

AF513E Single Phase and 3 Phases Motor Trainer Kit With VFDSchool Teaching Equipment Educational Equipment Electrical Training Equipment
1. Product Overview
1.1 Product Description

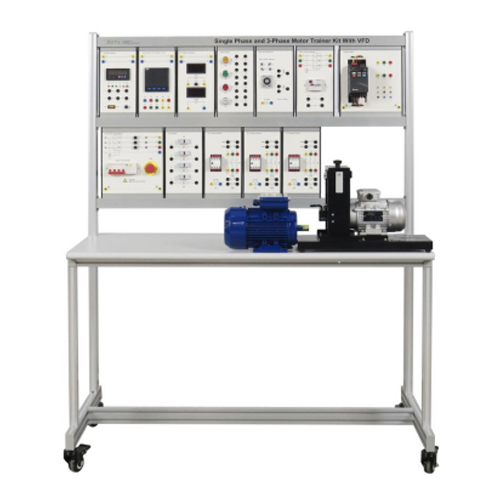

This system integrates a single-phase capacitor motor, a three-phase asynchronous motor, a variable frequency drive (VFD), various control modules, and measuring instruments. It enables a range of experiments—including direct motor starting, variable frequency drive operation, load testing, and rotational speed acquisition—helping users understand motor control principles, variable frequency speed regulation technology, and electrical protection logic.
1.2 Product Features
Supports control experiments for both single-phase and three-phase motors, covering diverse instructional scenarios.
Features a modular design with independently installed control modules, allowing for the flexible configuration of various control circuits.
Equipped with a digital tachometer, force gauge, and voltmeter/ammeter to enable real-time monitoring of key parameters such as motor speed, load, voltage, and current.
Incorporates multiple safety protection devices—including an emergency stop switch, earth leakage circuit breaker, and fuses—ensuring safe and reliable operation.
Utilizes banana sockets and electrical safety connection cables for connections; the wiring process is convenient and intuitive, making it ideal for educational experiments.
2. Technical Specifications
2.1 Basic Technical Parameters
Power Supply    3-phase, 5-wire, 380 VAC / 50 Hz
Operating Environment    Ambient temperature: 10°C ~ 30°C
Relative humidity: <75% (at 25°C)
2.2 Equipment Dimensions and Weight
Dimensions    1310mm×700mm×1620mm
Weight    <150kg

3. Product Introduction
3.1 Product Overview
No.    Name    Quantity
1    Module    12
2    Motor    2
3    Tensile testing machine    1
4    Frame    1
3.2 Product Accessories
No.    Name    Quantity
1    1m electrical safety connection cable (Red, dual-ended)    6
2    1m electrical safety connection cable (Bi-colored, dual-ended)    5
3    1m electrical safety connection cable (Green, dual-ended)    6
4    1m electrical safety connection cable (Blue, dual-ended)    11
5    1m electrical safety connection cable (Yellow, dual-ended)    11
6    1m electrical safety connection cable (Black, dual-ended)    6
7    Extended Hex Key Set (9 pieces)    1
8    5A Fuse Insert    5
9    5A Fuse (5x20mm)    5
10    3A Fuse (5x20mm)    5
4. List of Educational Experiments
(1) Starting a Single-Phase capacitor motor
(2) Starting a Three-Phase asynchronous motor
(3) Driving a Three-Phase motor with a variable frequency drive (VFD)
(4) Tensile force testing
(5) Rotational speed data acquisition
