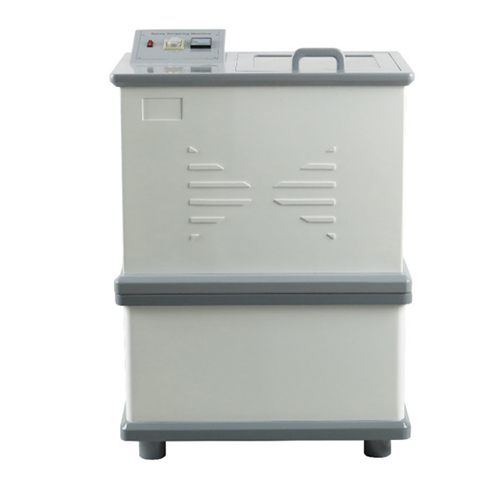

AF025 Spray Stripping Machine PCB Laboratory Equipment Educational Equipment Teaching Equipment1. Equipment Introduction
1.1 Overview
The equipment used for circuit board processing can quickly and easily complete the processing of circuit boards.
After turning on the power on the back of the equipment, the equipment will automatically heat up when it starts. After reaching the preset temperature, it can be maintained at the set temperature. The equipped timer and temperature control meter can facilitate user operation.
1.2 Features
(1) Spraying method: The flushing system mainly consists of four pairs of spray pipes spraying on the front and back of the board surface. The spraying uniformity is good, and the nozzle can be easily removed and replaced after long-term use.
(2) Parameter setting: The equipment temperature and spraying time can be set.
(3) Body design: The overall structure is compact, which simplifies the operation.
(4) Liquid circulation: The liquid can be circulated and sprayed to maximize the use of the liquid.
2. Technical parameters
Power supply: AC 220v
Weight: 22kg
Dimensions (cm): 66.8cm*43.8cm*56.5cm
Operating environment: -25℃ to 40℃
3. Main part
|
No
|
Name
|
|
1
|
Power switch
|
|
2
|
Time relay
|
|
3
|
Temperature controller
|
|
No
|
Name
|
|
1
|
Nozzle
|
|
2
|
Card slot
|
|
3
|
(Internal) heating rod
|
|
No
|
Name
|
|
1
|
Power interface
|
|
2
|
Main power switch
|
4. Accessories
|
No
|
Name
|
|
1
|
Sodium hydroxide
|
|
2
|
Power cord
|
|
3
|
Rubber gloves
|
