AFT019 Three Way Mixing Valve Training Panel Teaching Model Demonstrational Equipment Thermal Lab Equipment1 Learning Objectives / Experiments
function and operating behaviour of a three-way mixing valve
effect of mixing ratio on feed flow or circulating flow temperature
effect of mixer setting on the flow rate
In conjunction with other training panels, it is possible to set-up a complete heating
System.
2 Specification

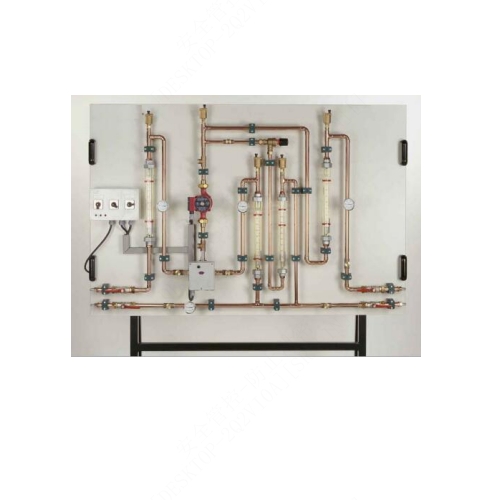

[1] trainer on heating systems and plumbing
[2] 3-way mixing valve
[3] circulating pump
[4] 4 rotameters
[5] 4 bimetallic dial thermometers
[6] 2 heating water connections
[7] 2 water connections for boiler
[8] 1 differential pressure overflow valve
[9] water connections made using quick-release couplings
