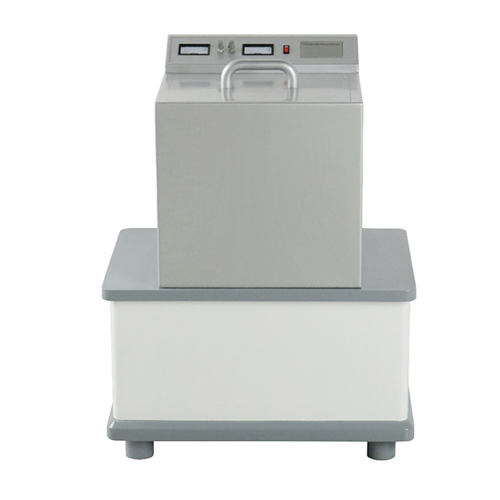

AF021 Through-Hole Plating Machine PCB Laboratory Equipment Educational Equipment Teaching Equipment1. Equipment Introduction
1.1 Overview
Through-hole electroplating machines are electroplating equipment used in the production of printed circuit boards. Their main function is to deposit metal in the through holes (via) of the circuit board to form a conductive connection. These devices can achieve efficient and precise electroplating processes and improve the interconnection reliability of the circuit board. Through-hole electroplating machines are generally able to handle through holes of different sizes and shapes to meet the manufacturing needs of diversified electronic products.
1.2 Features
(1) High precision: Able to accurately control the thickness and diameter of the electroplating layer to ensure the uniformity of metal deposition in the through hole.
(2) High degree of automation: Adopt advanced control systems and automation systems to improve production efficiency and reduce human errors.
(3) Reliability: The equipment has a solid structure, stable operation, low failure rate, and ensures long-term continuous production.
(4) Easy maintenance: The design takes into account the maintenance and cleaning of the equipment, making it convenient for operators to perform daily maintenance.
(5) Safety: The equipment has complete safety protection measures to ensure the safety of operators.
2. Technical parameters
Power supply: AC 220v
Weight: 20kg
Dimensions (cm): 43cm*43cm*46.5cm
Operating environment: -25℃ to 40℃
3.Component list
|
No
|
Name
|
|
1
|
Voltmeter
|
|
2
|
Adjustment knob (voltage)
|
|
3
|
Adjustment knob (current)
|
|
4
|
Amperemeter
|
|
No
|
Name
|
|
1
|
Titanium bar
|
|
2
|
Negative electrode
|
|
3
|
Positive electrode
|
|
4
|
Clamp
|
4.Accessories
|
No
|
Name
|
|
1
|
Copper sulfate solution
|
|
2
|
Power cord
|
|
3
|
Rubber gloves
|
|
4
|
Brush
|
|
5
|
Conductive glue
|
