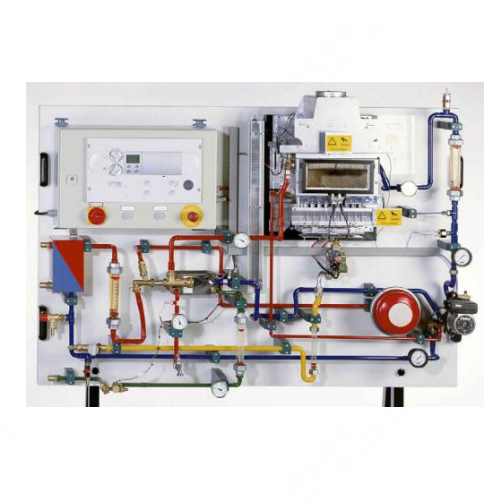

AFT013 Training Panel Function of Gas Heater Teaching Model Demonstrational Equipment Thermal Lab Equipment1.Learning Objectives / Experiments
familiarisation with the functioning of a combination boiler
understanding of a heating circuit
domestic water heating
measurement of gas pressures on a gas boiler
determination of power and efficiency
2.Specification
[1] familiarisation with a typical combination boiler
[2] main components clearly mounted on panel
[3] burner with viewing window for observation of flame
[4] plate heat exchanger simulates radiator, cold water used as heating load
[5] additional instrumentation for energy balances: thermometers, flow meters, manometers
[6] operation with propane gas
